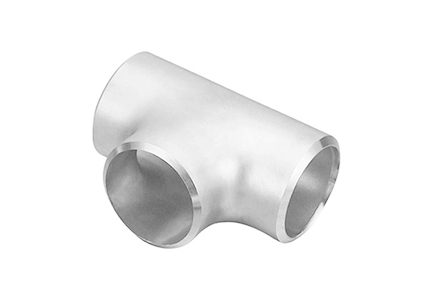

Tee
We can provide seamless tube tees and welding tube tees, most straight tees on the market are welded and welding lines are worn away, which is not allowed in the manufacture of pressure pipe components. While straight tees (OD 1/2"~72") are formed in one process(without weld joint). We have adopted advanced equipment and technologies in the production of our pipe tees, which can improve product quality, shorten processing time and reduce costs.
Tee is a kind of industrial pipe fittings. It is mainly used to either combine or split a fluid flow. Most common tees have the same inlet and outlet sizes, but reducing tees are also available. we can provide high quality straight tees and reducing tees to worldwide customers. According to the type of raw material, our product can be sorted into carbon steel tee, stainless steel tee, alloy steel tee, high-strength steel tee(Line pipe tee), low-temperature steel tee, and so on. Relying on superior quality and low price, our products are very popular in Italy, Germany, Spain, France, Russia, the United States, Brazil, Iran, India, and some other countries.
Specifications for Tee
| |
Production range |
Seamless tube tee | Welding tube tee |
Outside diameter | 1/2"-24" DN15-DN600 | 26"~120" DN650-DN3000 |
Wall thickness | 4mm~100mm |
Product type | Straight tee, reducing tee |
Wall Thickness
sch10、sch20、sch30、std、sch40、sch60、xs
|
sch80、sch100、sch120、sch140、sch160、xxs |
sch5s、sch10s、sch20s、sch40s、sch80s |
Max. wall thickness: 200mm |
Materials
Carbon steel：
|
ASTM/ASME A234 WPB WPC |
Alloy steel： |
ASTM/ASME A234 WP1 WP11
WP12 WP22 WP5 WP91 WP911 |
Stainless steel： |
ASTM/ASME A403
WP304 304L 304H 304LN 304N
WP316 316L 316H 316LN 316Ti
WP321 321H 347 347H |
Low temperature steel： |
ASTM/ASME A402 WPL3 WPL6 |
High performance steel： |
ASTM/ASME A860 WPHY42 46 52 60 65 70 |
Standards
( Red can be available to download standard )
ASME B16.9-2012 |
ASME B16.25-2012 |
ASME B36.10M-2004 |
ASME B36.19M-2004 |
MSS SP 75-2004 |
MSS SP 43-2001 |
EN 10253-1-1999 |
EN 10253-2-1999 |
EN 10253-3-1999 |
EN 10253-4-1999 |
DIN 2615-1-1992 |
DIN 2615-1-1992 |
BS 1640-1-1962
| BS 1640-2-1962 |
BS 1640-3-1968 |
BS 1640-4-1968 |
BS 1965-1-1963 |
CSA Z245.11-13-2013 |
GOST 17376-2001 |
ISO 3419-1981 |
ISO 5251-1981 |
GB/T 12459-2005 |
GB/T 13401-2005 |
GB/T 10752-2005 |
SH/T 3408-2012 |
SY/T 0609-2006 |
SY/T 0518-2002 |
SY/T 0510-2010 |
DL/T 695-2014 |
DL 473-1992 |
GD 2000 |
GD 87-1101 |
AFNOR NF A 49-289-1990 |
AFNOR NF A 49-170-1-1999 |
AFNOR NF A 49-170-2-2009 |
AFNOR NF A 49-170-3-2009 |
AFNOR NF A 49-170-4-2009 |
Industrial Processes
Squeezing, Pressing, Forging, Machining And More
Packaging
Plywood pallet or cases, wooden pallet or cases, or according to customer's requirment
Stainless Steel Elbow can be sleeved into plastic bag individually, pieces wrapped with water-proof material, carbon steel Elbow can be packed in plastic bags and closed in carton boxes or seaworthy wooden or plywood pallet or cases, clear labels are tagged on the outside of the package for easy identification of the quantity and product I.D. Great care will be taken during operation and transportation, to prevent any damage.
Company Information
JNFIT INDUSTRIES LIMITED. is a professional pipe elbow manufacturer and supplier. Our pipe elbow has passed ISO 9000, Pressure Equipment Directive 97/23/EC (PED 97/23/EC), AD2000 Merkblatt W0, and API certification is under applying. It is widely used by Petrobras, Pemex, CNPC, Sinopec, CNOOC, and are well accepted by customers in many countries, including Italy,Russia, Spain, Germany, France, the United States, Brazil, Iran, India, and others. We welcome both domestic and international customers to choose our industrial pipe fittings which include industrial flange, forged fittings, steel pipes and high pressure tubing etc.
We are looking forward to working with you!
