CROSS

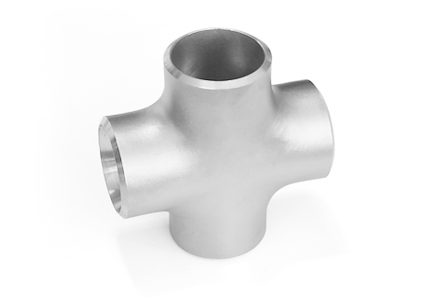

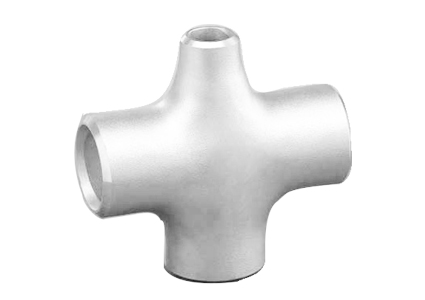

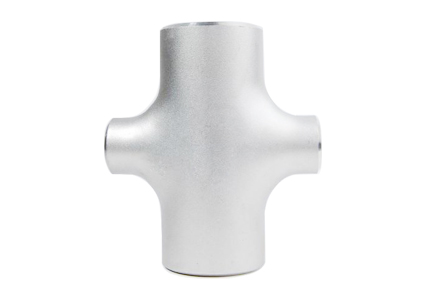

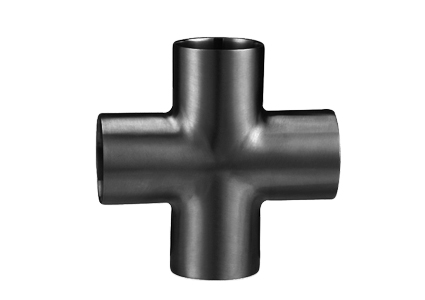

Cross may have one inlet and three outlets, while three inlets and one outlets are also available. Pipe crosses with the same inlet and outlet sizes are straight crosses, and crosses with different inlet and outlet sizes are called reducing crosses. In order to satisfy various customers requirements, we produce our cross pipes using different materials.
We have carbon steel cross, stainless steel cross, alloy steel cross high-strength steel cross (Line pipe cross), low-temperature steel cross, etc. As a result of their tensile strength, corrosion resistance and dimensional accuracy, our products are well received in many countries, like Italy, Germany, Spain, France, Russia, the United States, Brazil, Iran, and India.
Specifications for Elbow
| |
Production range |
Seamless pipe cross | Welding pipe cross |
Outside diameter | 1/2"-24" DN15-DN600 | 26"~120" DN650-DN3000 |
Wall thickness | 4mm~100mm |
Product type | Straight cross, Reducing cross |
Wall Thickness
sch10、sch20、sch30、std、sch40、sch60、xs
|
sch80、sch100、sch120、sch140、sch160、xxs |
sch5s、sch10s、sch20s、sch40s、sch80s |
Max. wall thickness: 200mm |
Materials
Carbon steel：
|
ASTM/ASME A234 WPB WPC |
Alloy steel： |
ASTM/ASME A234 WP1 WP11
WP12 WP22 WP5 WP91 WP911 |
Stainless steel： |
ASTM/ASME A403
WP304 304L 304H 304LN 304N
WP316 316L 316H 316LN 316Ti
WP321 321H 347 347H |
Low temperature steel： |
ASTM/ASME A402 WPL3 WPL6 |
High performance steel： |
ASTM/ASME A860 WPHY42 46 52 60 65 70 |
Standards
( Red can be available to download standard )
ASME B16.9-2012 |
ASME B36.10M-2004 |
CSA Z245.11-13-2013 |
ASME B16.25-2012 |
ASME B36.19M-2004 |
SY/T 0510-2010 |
GB/T 12459-2005 |
GB/T 13401-2005 |
Industrial Processes
Squeezing, pressing, forging, machining and more
Packaging
Plywood pallet or cases, wooden pallet or cases, or according to customer's requirment
Stainless Steel Elbow can be sleeved into plastic bag individually, pieces wrapped with water-proof material, carbon steel Elbow can be packed in plastic bags and closed in carton boxes or seaworthy wooden or plywood pallet or cases, clear labels are tagged on the outside of the package for easy identification of the quantity and product I.D. Great care will be taken during operation and transportation, to prevent any damage
Company Information
JNFIT INDUSTRIES LIMITED. is a professional pipe elbow manufacturer and supplier. Our pipe elbow has passed ISO 9000, Pressure Equipment Directive 97/23/EC (PED 97/23/EC), AD2000 Merkblatt W0, and API certification is under applying. It is widely used by Petrobras, Pemex, CNPC, Sinopec, CNOOC, and are well accepted by customers in many countries, including Italy,Russia, Spain, Germany, France, the United States, Brazil, Iran, India, and others. We welcome both domestic and international customers to choose our industrial pipe fittings which include industrial flange, forged fittings, steel pipes and high pressure tubing etc.
We are looking forward to working with you!
