Elbow

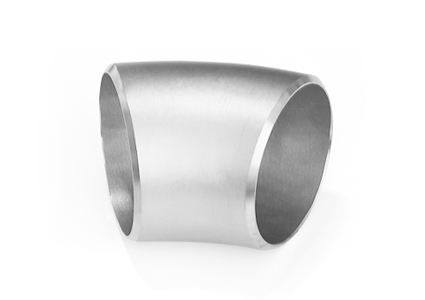

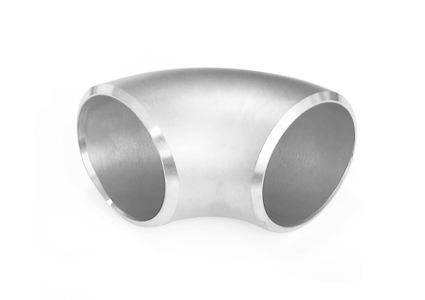

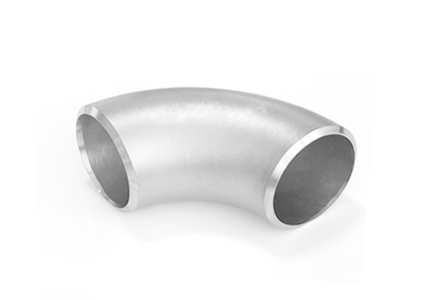

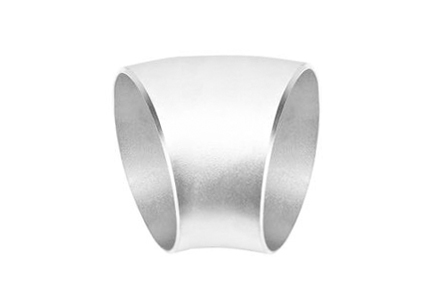

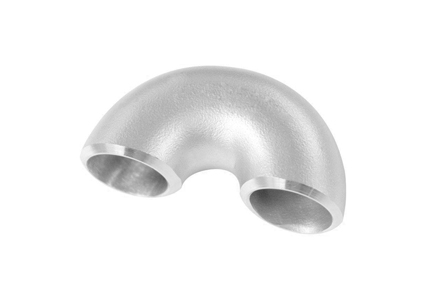

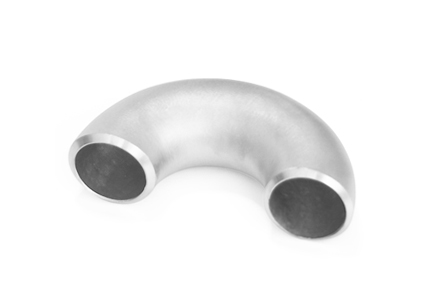

Elbow is a pipe fitting installed between two lengths of pipes to allow a change of direction, usually 45°, 90° or 180°. 22.5°, 60° pipe elbow and other unusual elbows can be made to meet the special requirements.

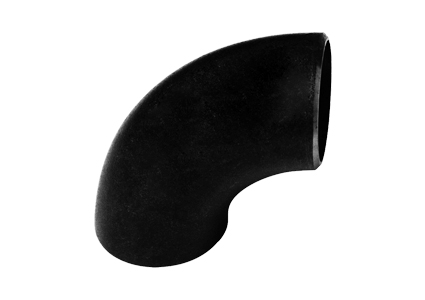

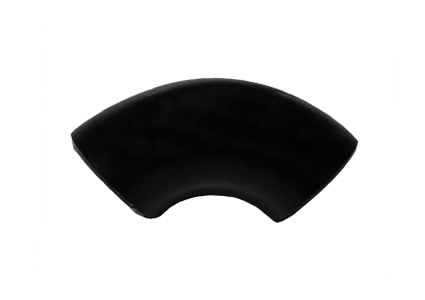

Elbows can be made from many materials, such as carbon steel, alloy steel, stainless steel, high-strength low-alloy steel, low-temperature steel, and others. The ends to connect pipes may be machined for butt welding, threaded connection, or socket welding.

According to the radius, most elbows can be divided into short radius elbows and long radius elbows. The long radius elbows have a center to end distance that is 1.5 times the NPS in inches (R=1.5D), while the short radius is equal to the NPS in inches (R=1.0D).

With our advanced production technology, we can produce the fittings with positive tolerance.

Long Radius Elbow

With the advanced production technology, we can manufacture long radius elbows (1.5D Φ1/2"-96") with the wall thickness up to 100mm. Product with the diameter from 1/2" to 48" can be produced with special technology to achieve first class quality.

Short Radius Elbow

We have adopted advanced production equipment to make our short radius elbows (1D 1.5D Φ1/2"-96"). The wall thickness of the product can be 100mm.

2.5D Elbow

With the utilize advanced equipment and technology, Therefore, we produce our elbows (2.5D Φ1/2"-80", wall thickness: 100mm) with high quality & competetive price. These products are well sold in Germany, Italy, Russia, UAE...

3D Elbow

We are an expert in the industrial processes such as bending, pressing, forging, machining etc. Adopting state-of-the-art production equipment, we can manufacture high quality elbows by using reduced raw materials. Due to the high performance and low prices, our pipe elbows are widely used in many industries, such as Nuclear, electricity, petroleum, natural gas, chemicals, shipbuilding, heating, papermaking, metallurgy, fire fighting and so on.

Specifications for Elbow

	Production range
	Seamless elbow	Welded elbow
Outside diameter	1/2"-24" DN15-DN600	26"~120" DN650-DN3000
Wall thickness	4mm~100mm
Bending radius	R=1D~20D
Product angle	0°~180°

Wall Thickness

sch10、sch20、sch30、std、sch40、sch60、xs

sch80、sch100、sch120、sch140、sch160、xxs

sch5s、sch10s、sch20s、sch40s、sch80s

Maximum thickness: 100mm

Materials

Carbon steel：	ASTM/ASME A234 WPB WPC
Alloy steel：	ASTM/ASME A234 WP1 WP11 WP12 WP22 WP5 WP91 WP911
Stainless steel：	ASTM/ASME A403 WP304 304L 304H 304LN 304N WP316 316L 316H 316LN 316Ti WP321 321H 347 347H
Low temperature steel：	ASTM/ASME A402 WPL3 WPL6
High performance steel：	ASTM/ASME A860 WPHY42 46 52 60 65 70

Standards

( Red can be available to download standard )

ASME B16.5-2013	ASME B16.9-2012	ASME B16.25-2007
EN10253-1-1999	EN10253-2-2007	EN10253-3-2008
EN10253-4-2008	DIN2605-1-1992	DIN2605-2-1995
JIS B2311-2009	JIS B2312-2009	JIS B2313-2009
GB/T12459-2005	GB/T13401-2005	GB/T10752-2005
SH/T3408-1996	SH/T3409-1996	SY/T0609-2006
SY/T0518-2002	SY/T0510-1998	HG/T21635-1987
DL/T695-1999	GD87-1101	HG/T21631-1990
GD2000

Industrial Processes

Bending, Squeezing, Pressing, Forging, Machining And More

Packaging

Plywood pallet or cases, wooden pallet or cases, or according to customer's requirment

Stainless Steel Elbow can be sleeved into plastic bag individually, pieces wrapped with water-proof material, carbon steel Elbow can be packed in plastic bags and closed in carton boxes or seaworthy wooden or plywood pallet or cases, clear labels are tagged on the outside of the package for easy identification of the quantity and product I.D. Great care will be taken during operation and transportation, to prevent any damage.

Company Information

JNFIT INDUSTRIES LIMITED. is a professional pipe elbow manufacturer and supplier. Our pipe elbow has passed ISO 9000, Pressure Equipment Directive 97/23/EC (PED 97/23/EC), AD2000 Merkblatt W0, and API certification is under applying. It is widely used by Petrobras, Pemex, CNPC, Sinopec, CNOOC, and are well accepted by customers in many countries, including Italy,Russia, Spain, Germany, France, the United States, Brazil, Iran, India, and others. We welcome both domestic and international customers to choose our industrial pipe fittings which include industrial flange, forged fittings, steel pipes and high pressure tubing etc.
