Blind Flange

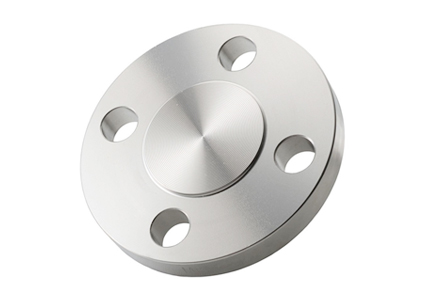

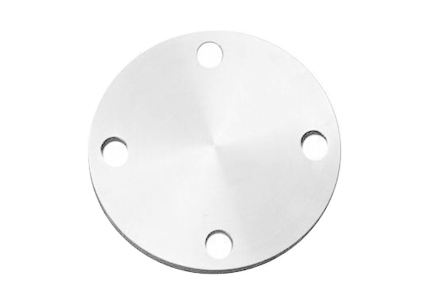

A blind flange is a popular type of pipe flange. It has no bore in the middle, and is primarily used to close ends of piping systems. This flange permits easy access to a line once it has been sealed.

It sometimes can be machined to accept a nominal sized pipe to which a threaded or welded reduction is being made. blind flanges are available in various sizes and materials for you to choose from.

Size

3/8"~120"
DN10~DN3000

Pressure for Blind Flange

American Series	European Series
CLASS 150	PN 2.5
CLASS 300	PN 6
CLASS 400	PN 10
CLASS 600	PN 16
CLASS 900	PN 25
CLASS 1500	PN 40
-	PN 63
-	PN 63

Flange Facing Types

American Series	European Series
Flat Face(FF)	Type A(Flat Face)
Raised Face(RF)	Type B(Raised Face)
Tongue(T)	Type C(Tongue)
Groove(G)	Type D(Groove)
Female(F)	Type E(Spigot)
Male(M)	Type F(Recess)
Ring Joints Face(RJ)	Type G(O-Ring Spigot)
-	Type H (O-Ring Groove)

Materials

Carbon Steel	ASTM A105
Alloy Steel:	ASTM A182 F1/F5/F9/F11/F22/F91/F92 Etc
Duplex Steel:	Duplex F51 2205 UNS S31803, Super Duplex 2507 (UNS S32750), F55 (UNS S32760)
Stainless Steel:	ASTM A182 F304 F304L F304H F309 F310 F310S F316 F316L F316 F316Ti F317 F317L F321 F347 F347H
Duplex Stainless Steel:	ASTM A182 F51/F53/F55/F60
Nicke alloys:	Nickel 200, Monel 400, Inconel 600/625, Incoloy 825/800
Cu-Ni:	90/10,70/30

Standards

( Red can be available to download standard )

ASME B16.5-2013	ASME B16.47-2011	MSS SP-44-2010
EN 1092-1-2007	EN 1759-1-2004	ISO 7005-1-1992
GB/T 9112-2010	GB/T 9123-2010	AS 2129-2000
HG/T 20592-2009	HG/T 20615-2009	HG/T 20623-2009
SH/T 3406-2013	GOST- AFNOR- BS- DIN	-

Industrial Processes

Die forging, Machining

Packaging

Plywood pallet or cases, wooden pallet or cases, or according to customer's requirment

Stainless Steel Elbow can be sleeved into plastic bag individually, pieces wrapped with water-proof material, carbon steel Elbow can be packed in plastic bags and closed in carton boxes or seaworthy wooden or plywood pallet or cases, clear labels are tagged on the outside of the package for easy identification of the quantity and product I.D. Great care will be taken during operation and transportation, to prevent any damage.

Company Information

JNFIT INDUSTRIES LIMITED. is a professional pipe elbow manufacturer and supplier. Our pipe elbow has passed ISO 9000, Pressure Equipment Directive 97/23/EC (PED 97/23/EC), AD2000 Merkblatt W0, and API certification is under applying. It is widely used by Petrobras, Pemex, CNPC, Sinopec, CNOOC, and are well accepted by customers in many countries, including Italy,Russia, Spain, Germany, France, the United States, Brazil, Iran, India, and others. We welcome both domestic and international customers to choose our industrial pipe fittings which include industrial flange, forged fittings, steel pipes and high pressure tubing etc.
We are looking forward to working with you!
