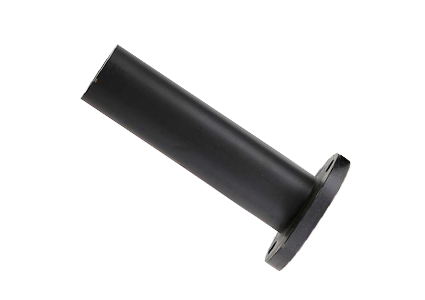

Long Weld Neck Flange

The long wn flanges connection is the lightest and most economical of FCI standard connections I offered for use where a minimum of reinforcing area is required. Long Weld Necks have a uniform barrel outside diameter that provides a nut relief clearance between the connection neck and the nut.

Lengths can be increased to allow for any offset, "hillside" or tangential location attachment on pressure vessel shells or heads. Contoured bottoms are available upon request.

Size

3/8"~120"
DN10~DN3000

Pressure

American Series	European Series
CLASS 150	PN 2.5
CLASS 300	PN 6
CLASS 400	PN 16
CLASS 600	PN 25
CLASS 900	PN 40
CLASS 1500	PN 63
CLASS 2500	PN 100
-	PN 160
-	PN 250
-	PN 320
-	PN 400

Flange Facing Types

American Series	European Series
Flat Face(FF)	Type A(Flat Face)
Raised Face(RF)	Type B(Raised Face)
Tongue(T)	Type C(Tongue)
Groove(G)	Type D(Groove)
Female(F)	Type E(Spigot)
Male(M)	Type F(Recess)
Ring Joints Face(RJ)	Type G(O-Ring Spigot)
-	Type H(O-Ring Groove)

Materials

Carbon Steel	ASTM A105
Alloy Steel:	ASTM A182 F1/F5/F9/F11/F22/F91/F92 Etc
Duplex Steel:	Duplex F51 2205 UNS S31803, Super Duplex 2507 (UNS S32750), F55 (UNS S32760)
Stainless Steel:	ASTM A182 F304 F304L F304H F309 F310 F310S F316 F316L F316 F316Ti F317 F317L F321 F347 F347H
Duplex Stainless Steel:	ASTM A182 F51/F53/F55/F60
Nicke alloys:	Nickel 200, Monel 400, Inconel 600/625, Incoloy 825/800
Cu-Ni:	90/10,70/30

Standards

( Red can be available to download standard )

ASME B16.5-2013	ASME B16.47-2011	API 605-1988
MSS SP-44-2010	EN 1092-1-2007	EN 1759-1-2005
CSA Z245.12-13-2013	ISO 7005-1-1992	AS 2129-2000
HG/T 20592-2009	HG/T 20615-2009	HG/T 20623-2009
GB/T 9112-2010	GB/T 9113-2010	GB/T 13402-2010

Industrial Processes

Forging, Machining

Packaging

Plywood pallet or cases, wooden pallet or cases, or according to customer's requirment

Stainless Steel Elbow can be sleeved into plastic bag individually, pieces wrapped with water-proof material, carbon steel Elbow can be packed in plastic bags and closed in carton boxes or seaworthy wooden or plywood pallet or cases, clear labels are tagged on the outside of the package for easy identification of the quantity and product I.D. Great care will be taken during operation and transportation, to prevent any damage.
